At Ubiquity Steel Detailing Private Limited, we provide a full range of structural and miscellaneous steel detailing services designed to meet the highest standards of quality, accuracy, and code compliance for clients across the USA and Canada. With extensive experience in AISC, CISC, and OSHA standards, our team ensures every drawing is production-ready and aligned with fabrication needs.

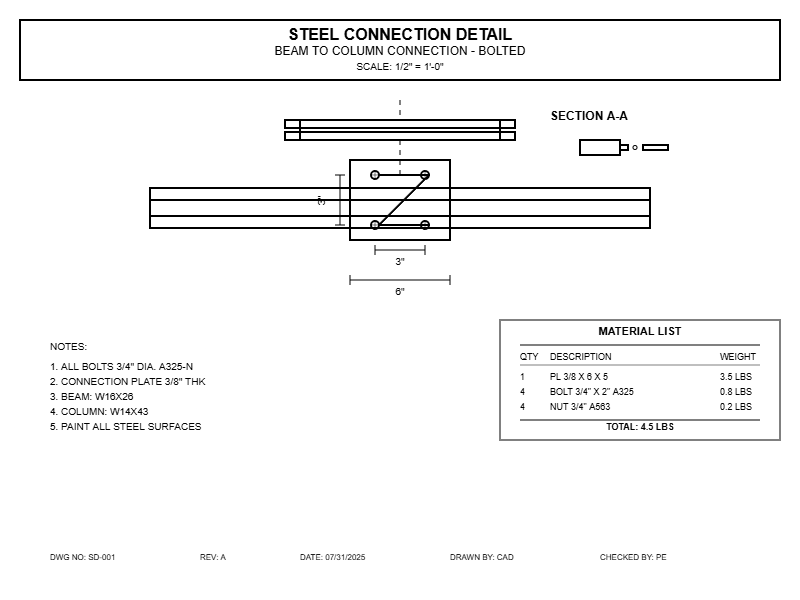

We produce detailed shop drawings for all structural steel components including: Beams, columns, braces, Stairs, ladders, and handrails, Erection drawings with plans, elevations & sections, Moment and shear connections.

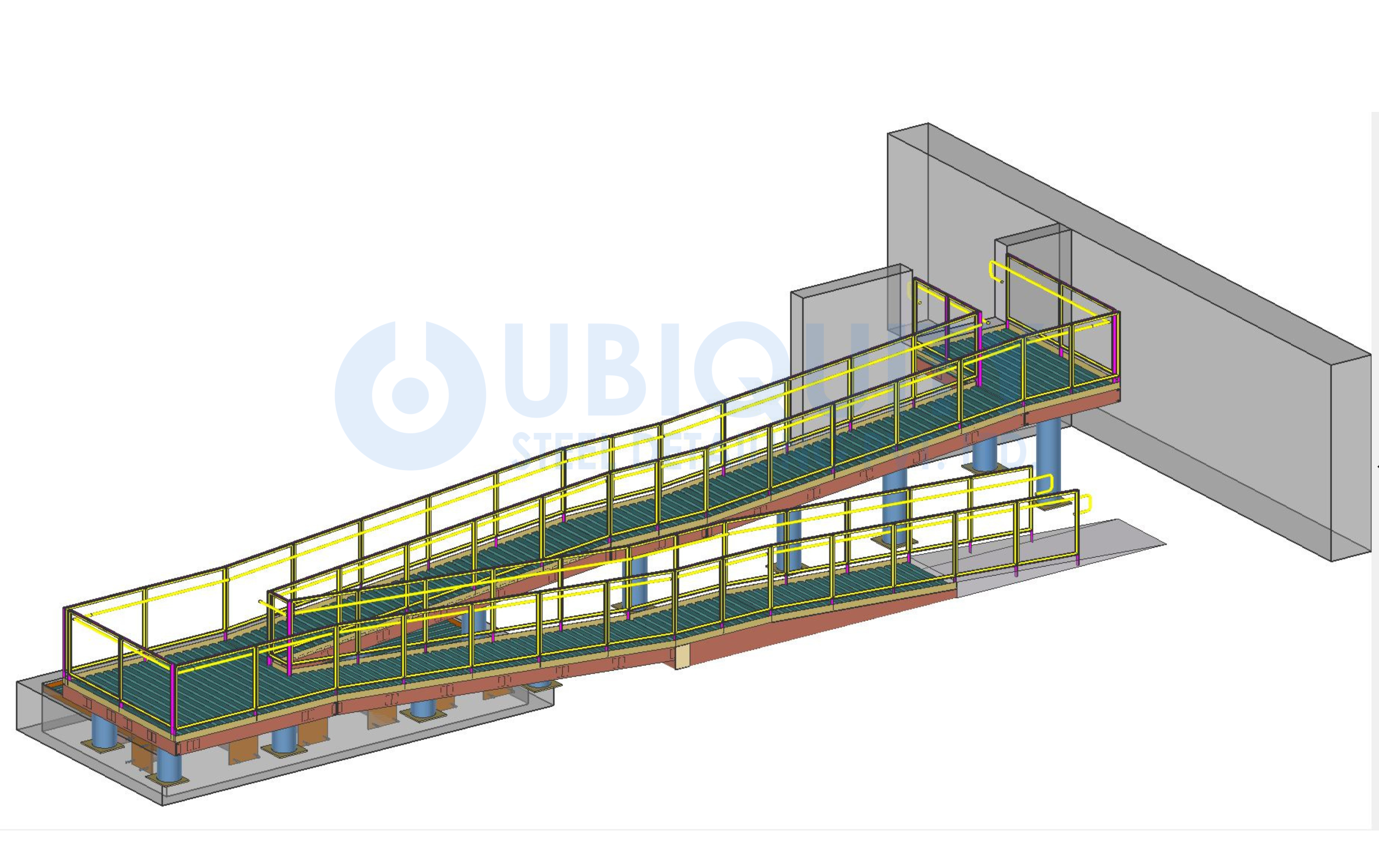

Our team provides precise shop drawings and 3D models for a wide range of miscellaneous steel elements, including: Stairs and Stair Stringers, Handrails and Guardrails, Ladders and Cage LaddersCanopies, Supports, Brackets.
We deliver clean, fabrication-ready shop drawings with: Accurate dimensions and BOMs (Bill of Materials), CNC data and DXF files (on request), Bolt and weld details, Field and erection markings.

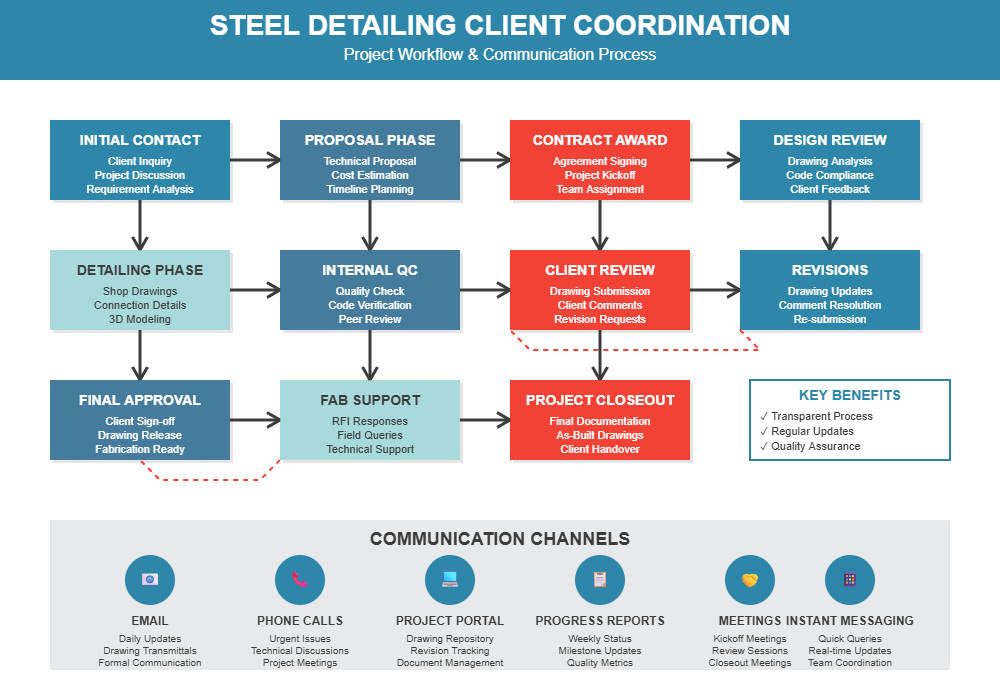

We assist with: Coordinating RFIs and markups, Integrating design changes, Resolving clashes and constructability issues, Smooth coordination with engineers, fabricators, and GC teams.
We use leading steel detailing software including: SDS/2, Tekla Structures, BlueBeam, Advance Steel. Our output is fully customizable to your shop and project requirements.
We provide accurate and detailed material take-offs to help fabricators, contractors, and engineers estimate costs, plan procurement, and optimize project timelines.
With decades of combined experience and a strong foundation in North American standards, Ubiquity Steel Detailing Private Limited is the trusted choice for fabrication companies across the USA and Canada.
With extensive experience in AISC, CISC, and OSHA standards, our team ensures every drawing is production-ready and aligned with fabrication needs.
We specialize in high-quality structural and miscellaneous steel detailing, including 3D modeling, shop drawings, erection plans, and CNC/BIM deliverables. Our services cover everything from beam and column layouts to stairs, railings, ladders, and custom steel components.
We support a wide range of projects, including:
Commercial buildings
Residential Buildings
Industrial plants
Warehouses
Infrastructure and utility structures

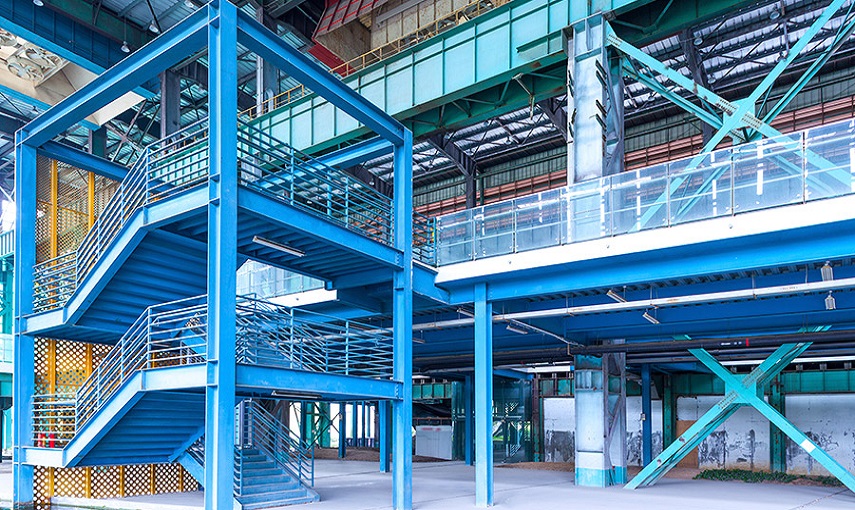

Stair towers, mezzanines, platforms and more
Our standard deliverables include:
2D Shop Drawings
Erection Drawings
3D Models
Material Take-offs (BOM/BOL)
CNC/DXF files (on request)
RFI Logs and Revision Histories
The steel detailing and fabrication industry is rapidly adopting advanced automation tools to increase precision and reduce turnaround times. According to Steel Times International, AI-driven clash detection in 3D modeling is cutting rework costs significantly for fabricators worldwide. At Ubiquity Steel Detailing, we monitor these trends closely to keep our clients ahead of the curve.-
Read More
India’s JSW Steel and Japan’s JFE Steel have jointly committed approximately ₹58.45 billion (~$669 million) to expand cold-rolled grain-oriented (CRGO) electrical steel production capacity across two JSW plants in India, pushing annual capacity up to 350,000 tonnes. This strategic investment enhances domestic manufacturing of high-grade electrical steel crucial for energy-efficient transformers -
Read More
The escalation of U.S. tariffs on steel and aluminum to 50% is now directly impacting the steel detailing and construction industry. Builders report cost increases of 8–10% on steel for projects like warehouses, while another commercial real estate project anticipates up to a 15% rise in structural component prices. These heightened material costs are causing budget overruns and prompting -
Read MoreWe provide innovative product solutions for sustainable progress. Our professional team works to increase productivity and cost effectiveness on the market.

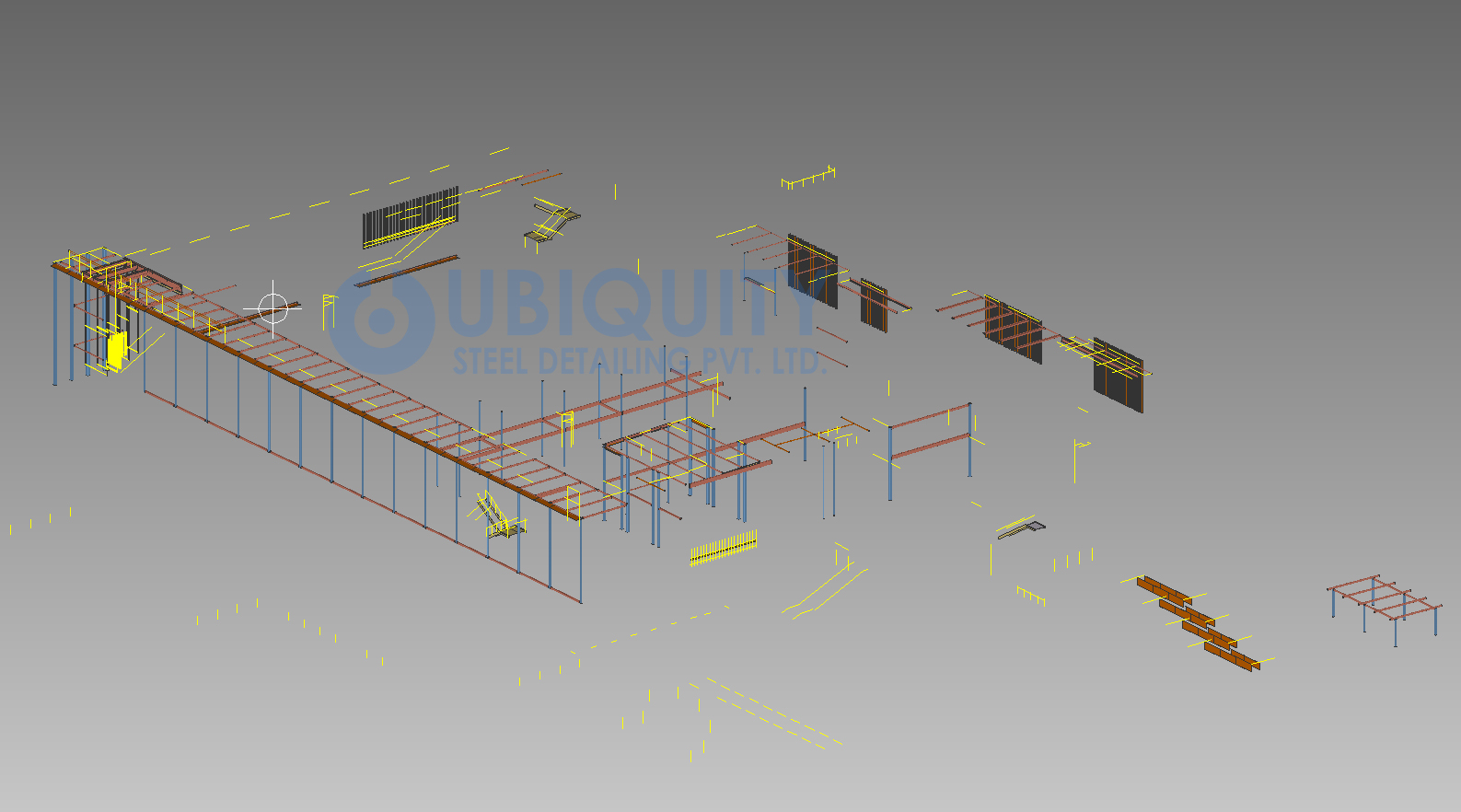

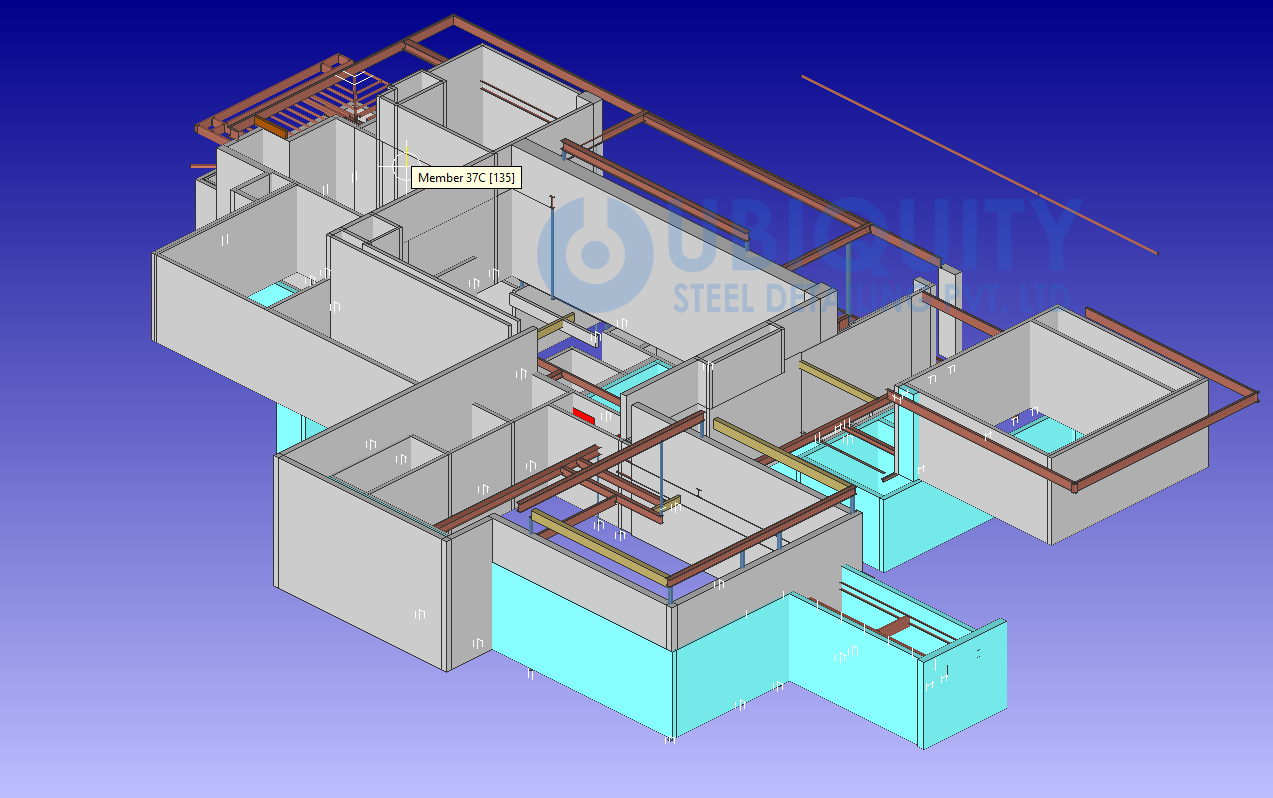

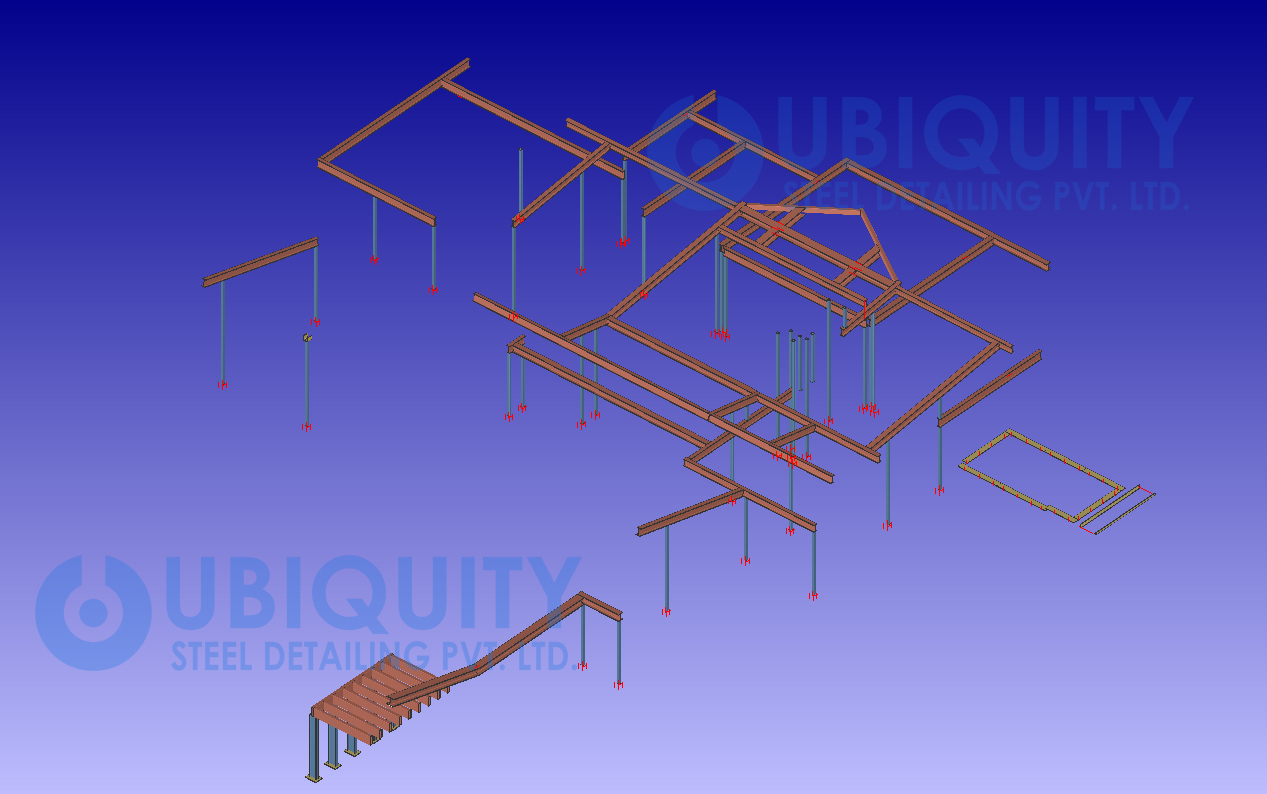

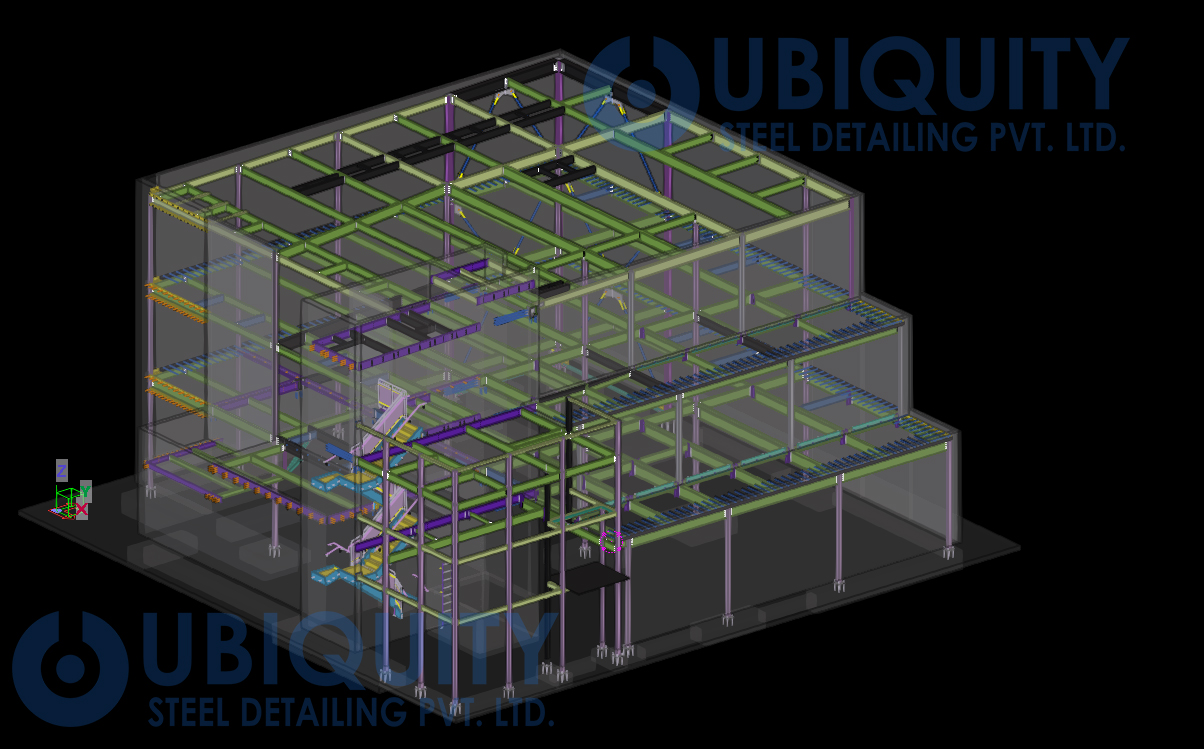

At Ubiquity Steel Detailing Private Limited, our portfolio reflects a diverse range of successfully executed projects across the USA and Canada. From complex high-rise commercial buildings and expansive industrial plants to custom residential developments and specialized infrastructure works, we deliver detailing solutions that meet exacting quality and code standards. Leveraging our expertise in AISC, CISC, and OSHA compliance, along with advanced Tekla and SDS/2 modeling, we ensure every project is fabrication-ready, accurate, and delivered on schedule.
Over the years, we have contributed to projects ranging from fast-track warehouse construction to intricate miscellaneous steel packages for institutional facilities. Our proven track record showcases not just technical skill, but a commitment to building lasting partnerships with fabricators, contractors, and engineers worldwide. Every drawing we produce reflects our dedication to precision, efficiency, and client satisfaction.
